Removing and installing/replacing carbon canister (US version with Natural Vacuum Leak Detection) (Cooper)

Preliminary work needed:

• Remove rear left UNDERBODY PLANKING .

Removal:

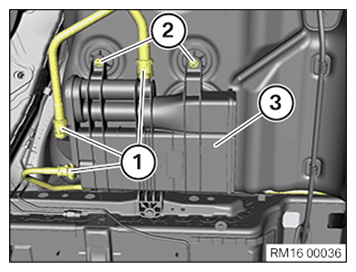

Unlock and detach quick-connect couplings (1).

Release plastic nuts (2) and remove carbon canister (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit carbon canister (3) and position and tighten plastic nuts (2).

Position snap fasteners (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Fit rear left UNDERBODY PLANKING .
