54 31 Convertible_Top_Linkage
>>
Removing and installing/replacing front left or right gasket (Cooper Convertible)
>>
REP-TAT-P-5434-01 Remove front gasket
REP-TAT-P-5434-01 Remove front gasket
Preliminary work
Remove the
TRIM PANEL
for the guide rail
Open the convertible top as shown.

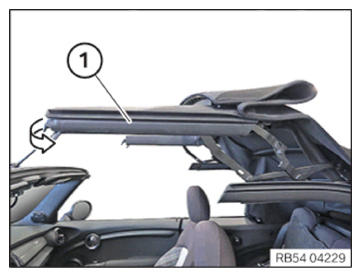

Detach the seal (1) off from front to back.
Courtesy of BMW OF NORTH AMERICA, INC.
