Removing and installing/replacing left or right guide rail trim panel (Cooper Convertible)

Preliminary work needed:

• Open folding sunroof Removing and installing/replacing left or right guide rail trim panel (Cooper Convertible)

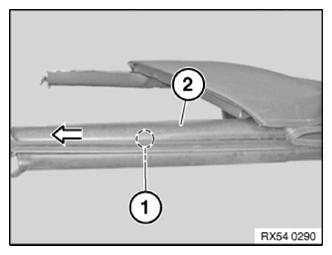

Remove screw (1).

Snap out trim panel (2) in arrow direction and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

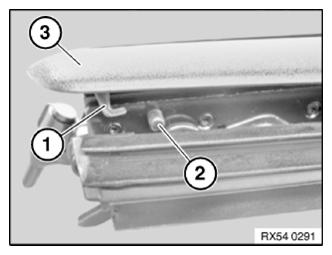

Hook (1) must snap into place correctly under guide lug (2).

Make sure trim panel (3) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.
