Replacing the Bowden cable of the left seat rail (Cooper Convertible)

Preliminary work needed:

• Remove front driver's SEAT .
• Remove OUTER COVER  on front seat.

Removal:

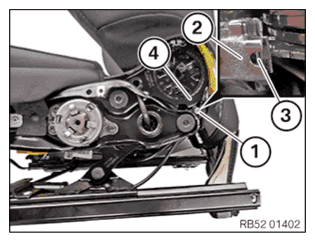

Release screw (1) on seat (4).

Guide the Bowden cable with adjustment mechanism (2) out of the backrest adjustment (3).

Courtesy of BMW OF NORTH AMERICA, INC.

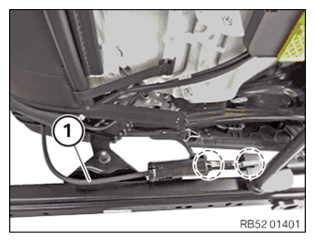

Unclip the Bowden cable (1) in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip in the Bowden cable (1) in the marked area.

Courtesy of BMW OF NORTH AMERICA, INC.

Position Bowden cable with adjustment mechanism (2) on backrest adjustment (3).

Tighten screw (1) on seat (4).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install OUTER COVER  on front seat.
• Install front driver's side SEAT .
