51 43 251 Removing and installing or replacing trim panel for left or right rear roof pillar (C-pillar)

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Detach trim panel (1) from clip (2) towards inside.

Remove trim panel (1) upwards.

Installation note:

Make sure edge protection (3) is correctly seated.

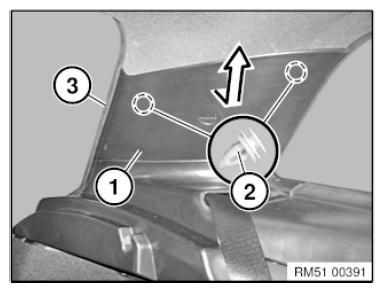

Fig 1: Detaching Trim Panel From Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace faulty clips (1).

Guides (2) must not be missing or damaged.

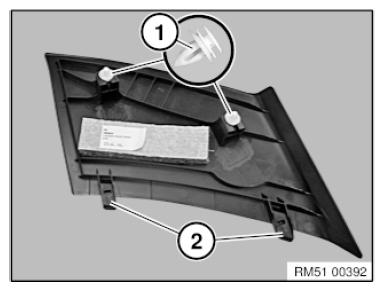

Fig 2: Identifying Clips And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
