51 71 041 Removing and installing/replacing rear left or right wheel arch cover

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove REAR WHEEL

Release screws (1).

Release expanding rivets (2).

Unscrew nuts (3).

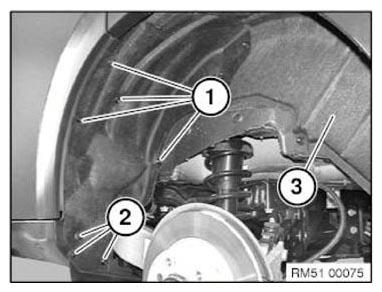

Fig 1: Identifying Wheel Arch Cover, Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace expanding rivets.

Unscrew nuts (1).

Release expanding rivets (2).

Remove wheel arch cover (3).

Installation note:

Replace expanding rivets (2).

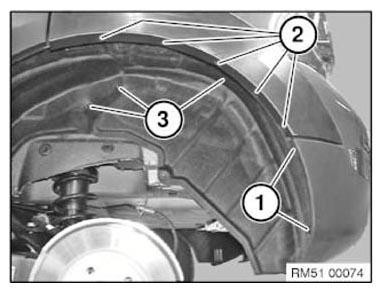

Fig 2: Identifying Wheel Arch Cover, Expanding Rivets And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
