51 21 235 Removing and installing/replacing Bowden cable for inside door opener on left or right front door

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove DOOR TRIM PANEL OF FRONT DOOR

Feed Bowden cable sleeve (2) out of inside door handle lock (1).

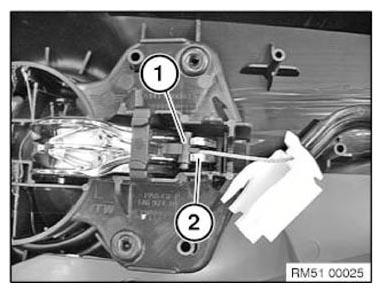

Fig 1: Identifying Inside Door Handle Lock And Bowden Cable Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Insert Bowden cable nipple (1) correctly into mounting (2) of inside door handle.

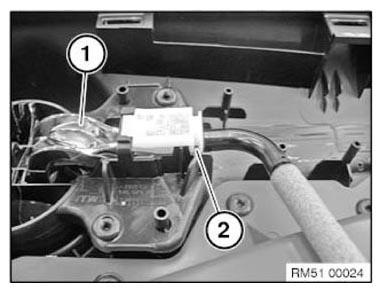

Fig 2: Identifying Bowden Cable Nipple And Inside Door Handle Mounting

Courtesy of BMW OF NORTH AMERICA, INC.
