51 11 182 Removing and installing/replacing ornamental grille in bumper panel at top front

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT BUMPER PANEL

Release latch mechanisms (1) and remove ornamental grille (2).

Installation note:

Latch mechanisms (1) on ornamental grille (2) and bumper panel must not be damaged.

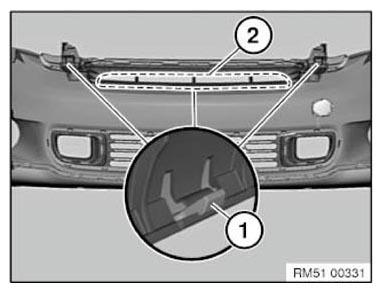

Fig 1: Identifying Latch Mechanisms On Ornamental Grille

Courtesy of BMW OF NORTH AMERICA, INC.
