11 37 020 Removing and installing/replacing positioning servomotor for eccentric shaft (N18)

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Disconnect the plug connection on the actuator drive.

Release screws (1).

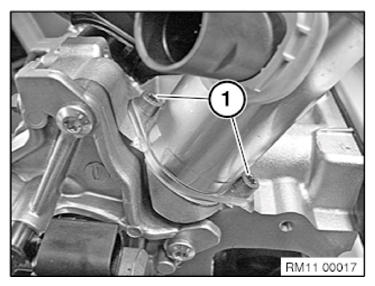

Fig 1: Identifying Actuator Drive Screws
G10001290Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The protective film on the adjusting screw (1) on the actuator drive (2) must be punched through.

Illustration shows protective film removed.

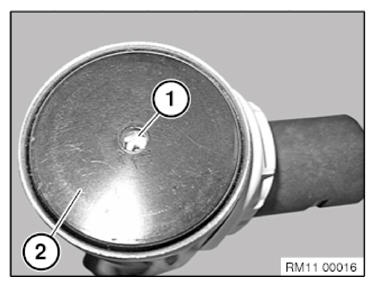

Fig 2: Identifying Adjusting Screw On Actuator Drive
G10001291Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Risk of damage  to the intermediate shaft.

Use a hexagon socket wrench for the reversible ratchet (1) to turn the shaft in direction of the arrow to the left and relax the intermediate shaft.

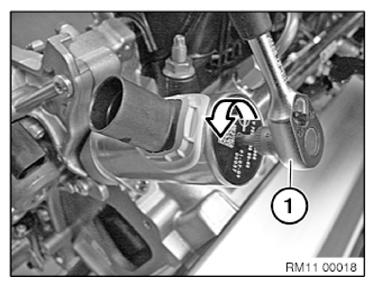

Fig 3: Turning Shaft Using Hexagon Socket Wrench
G10001292Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: Do not rotate shaft too far; do not rotate past the end stop.

Remove actuator drive.

Installation note:

Insert actuator drive with screwdriver (2).

IMPORTANT: Risk of damage to sealing surface.

Lever out the shaft seal (1) with a suitable tool, if applicable.

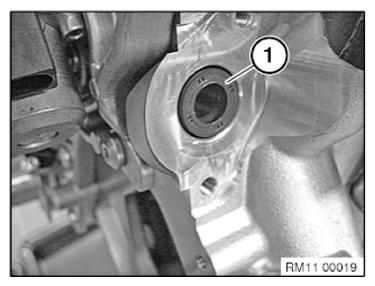

Fig 4: Identifying Shaft Seal
G10001293Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Detach the shaft seal (1) in direction of arrow and replace.

Fig 5: Detaching Shaft Seal
G09874823Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Press the shaft seal (1) to the limit position on the housing.

Fig 6: Pressing Radial Shaft Seal To Limit Position On Housing
G09874824Courtesy of BMW OF NORTH AMERICA, INC.

Screw in the actuator drive (1) in direction of arrow evenly with the shaft over the gearing of the intermediate shaft to the limit position.

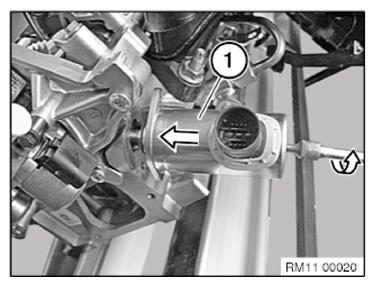

Fig 7: Screwing In Actuator Drive
G10001296Courtesy of BMW OF NORTH AMERICA, INC.

Insert bolts (1).

Tightening torque: 11 37 4AZ .

The plug connection must audibly engage at the actuator drive.

Fig 8: Identifying Actuator Drive Screws
G10001290Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Bond the protective film over the adjusting screw (1).

Fig 9: Identifying Adjusting Screw On Actuator Drive
G10001291Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of Digital Engine Electronics.
