11 00 670 Secure engine in installation position

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

WARNING: Danger of injury!
Observe following instructions relating to special tool:
  1. Prior to each use, check the special tools for defects, modifications and operational reliability.
  2. Damaged/modified special tools must not be used!
  3. No changes or modifications may be made to the special tools!
  4. Keep special tools dry, clean and free of grease.

With the aid of an assistance, place cross member 00 6 100 and supports 00 6 150 on spring strut dome and bumper support.

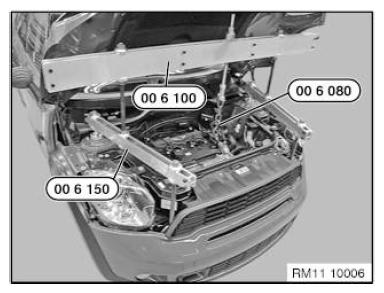

Fig 1: Positioning Cross Member (00 6 100) And Supports (00 6 150) On Spring Strut Dome And Bumper Support
G11006692Courtesy of BMW OF NORTH AMERICA, INC.

Align cross member 00 6 150 on spring strut dome and bumper support.

Slacken off Allen screws until the supports can be moved.

Align cross member 00 6 150 such that spindle (1) is correctly positioned over suspension lug.

Attach hook 00 6 080 in the suspension lug.

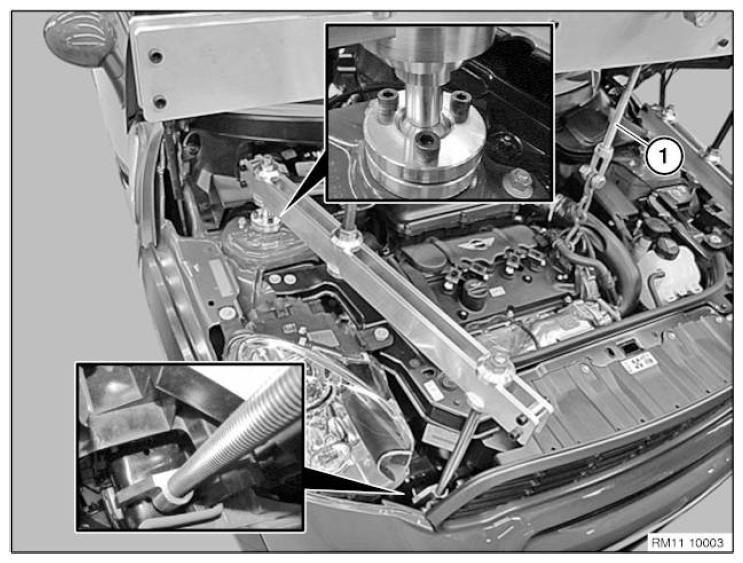

Fig 2: Aligning Cross Member (00 6 150) On Spring Strut Dome And Bumper Support
G11006693Courtesy of BMW OF NORTH AMERICA, INC.

After aligning the special tool, tighten bolts (1).

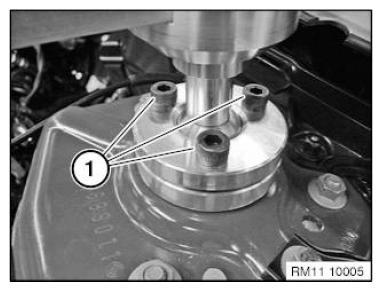

Fig 3: Identifying Suspension Lug Bolts
G11022065Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Avoid a change of engine position in the transverse or longitudinal direction.
Always make sure there is sufficient clearance between the engine (or its add-on parts) and the body.
IMPORTANT: Complete the following tasks without fail before raising the engine.

Left side only:

Remove TRANSMISSION SUPPORT BRACKET .

Right side only:

Slacken nut (1).

Installation note:

Replace self-locking nut.

Tightening torque 22 11 2AZ .

Fig 4: Identifying Nut
G04796111Courtesy of BMW OF NORTH AMERICA, INC.

Illustration shows R56

IMPORTANT: Avoid over-elongation of rubber mounts in bracket (1) when raising.

Slacken screws (2) and (3).

Fig 5: Identifying Bracket And Bolts
G04796110Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Secure engine first to engine or transmission mounts and then tighten down bolts (2) and (3).

Tightening torque 22 11 6AZ .
