41 14 020 Replacing front left wheel arch

Read contents of BODY, GENERAL .

Follow procedure for REPAIR STAGE 3 .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .

Use only approved SPOT-WELDING APPARATUS  for repairs.

Place vehicle on straightening bench.

The following new body parts are required:

• (1) Wheel arch, front
• (2) Outer wheel arch carrier support

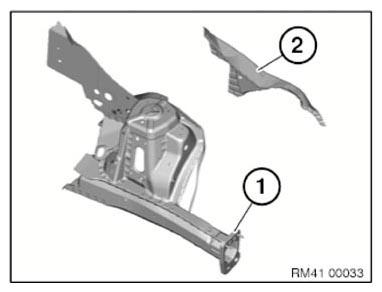

Fig 1: Identifying Wheel Arch And Outer Wheel Arch Carrier Support

Courtesy of BMW OF NORTH AMERICA, INC.

Removing the wheel arch

Open welded connections in areas (1).

Open SPOT-WELDED ADHESIVE JOINTS  in area (2).

Remove the carrier support.

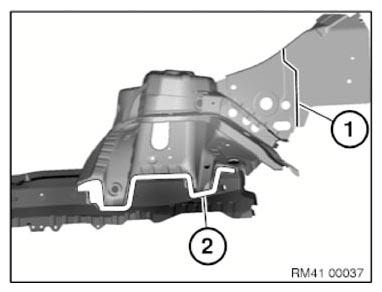

Fig 2: Identifying Carrier Support Welding Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut in accordance with dimension and cut.

Dimension a = 20 mm from A-pillar component.

Open welded connections in areas (1).

Installation note:

Weld on new part, overlapping severance cut connection face.

Fig 3: Identifying A-Pillar Component Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

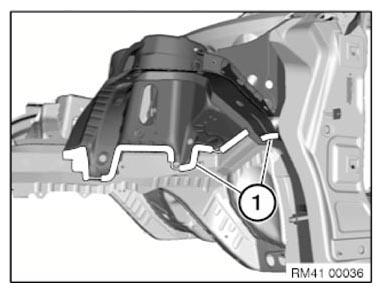

Fig 4: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Fig 5: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Open welded connections in areas (1).

Fig 6: Identifying Welded Connections Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut on new part in accordance with severance cut on vehicle +20 mm extra material and cut (1).

Open welded connections in areas (2).

Fig 7: Identifying Welded Connections Areas And Severance Cut Area

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the wheel arch

Adjust new parts with alignment bracket or universal mount and weld.
