41 11 311 Replacing entrance for door front left

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Follow procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

The following new body parts are required:

(1) Side frame, outer, left

Fig 1: Identifying Outer Side Frame

Courtesy of BMW OF NORTH AMERICA, INC.

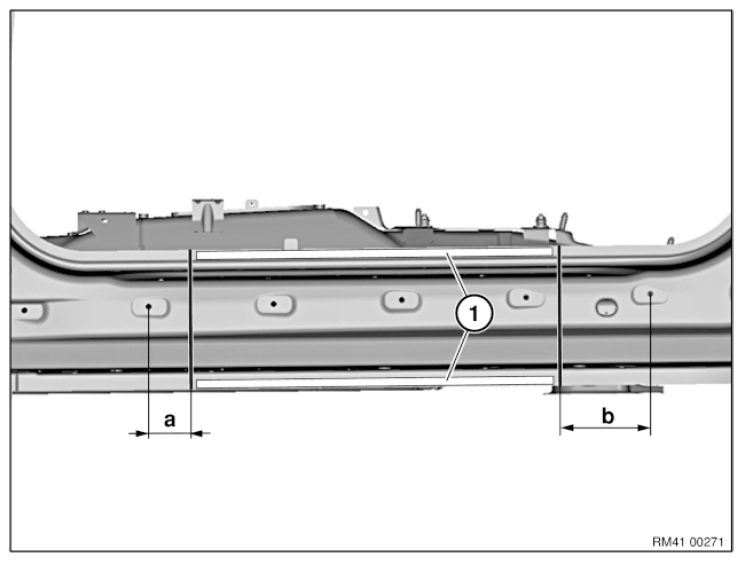

Mark severance cuts in accordance with specified dimensions and cut.

IMPORTANT: Cut outer panel only for following severance cuts.

Dimension a = approx. 55 mm behind 8 mm dia. hole.

Dimension b = approx. 125 mm before 8 mm dia. hole.

Open welded connections in areas (1).

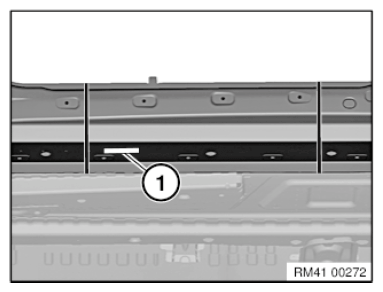

View from below.

Open welded connections in area (1).

Remove the entrance section.

Fig 2: Identifying Welded Connections Areas And Severance Cut Dimensions

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Mark new part in accordance with severance cuts on vehicle and cut.

Separate welded connections on new part to match vehicle.

Weld in REINFORCEMENT PLATES at all severance cuts.

Fig 3: Identifying Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.
