41 11 071 Replacing engine support with left wheel arch in front of bulkhead

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Follow procedure for REPAIR STAGE 3 .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .

Use only approved SPOT-WELDING APPARATUS for repairs.

Place vehicle on straightening bench.

The following new body parts are required:

(1) Carrier support, wheel arch, outer
(2) Wheel arch, front
(3) Engine support, rear

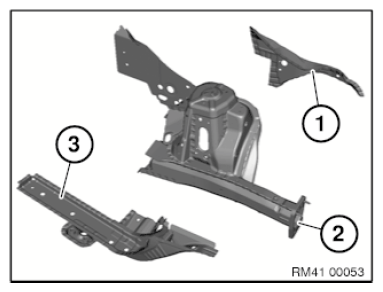

Fig 1: Identifying Carrier Support, Wheel Arch And Engine Support

Courtesy of BMW OF NORTH AMERICA, INC.

Removal of engine support with wheel arch

Open welded connections in areas (1).

Open SPOT-WELDED ADHESIVE JOINTS in area (2).

Remove the carrier support for wheel arch.

Fig 2: Identifying Carrier Support Welding Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut in accordance with dimension and cut.

Dimension a = 20 mm from A-pillar component.

Open welded connections in areas (1).

Installation note:

Weld on new part, overlapping severance cut connection face.

Fig 3: Identifying A-Pillar Component Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

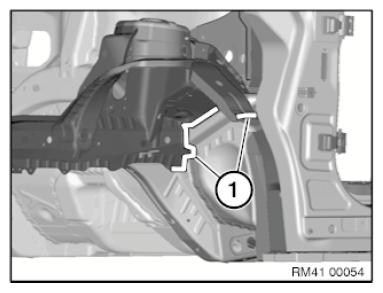

Fig 4: Identifying Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in area (1).

Fig 5: Identifying Welded Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with dimension and cut.

Dimension a = approx. 135 mm from center of 10 mm dia. hole.

Mark severance cut (2) as pictured and cut.

Remove section (3).

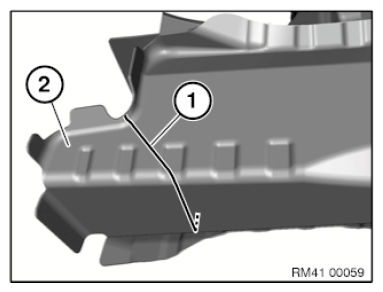

Fig 6: Identifying Engine Support Section And Severance Cuts

Courtesy of BMW OF NORTH AMERICA, INC.

Open welded connections in areas (1).

Mark severance cut (2) on engine support as pictured and cut.

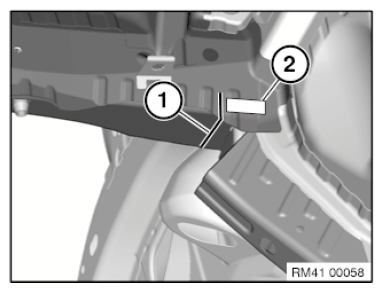

Fig 7: Identifying Severance Cut Mark On Engine Support

Courtesy of BMW OF NORTH AMERICA, INC.

Outer side of engine support.

Mark severance cut (1) as pictured and cut.

Open welded connections in area (2).

Remove engine support with wheel arch.

Fig 8: Identifying Severance Cut Area Welded Connections Area

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

Grind a V-shaped groove (1) into engine support.

NOTE: In area (1), all 3 panels and the reinforcement plate must be properly MAG welded to each other.

Fig 9: Identifying V-Shaped Groove

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut on new wheel arch part in accordance with severance cut on vehicle +20 mm extra material and cut (1).

NOTE: New part is installed with overlap in area of severance cut (1).

Fig 10: Identifying Engine Support Mark Severance Cut Dimension (Inside)

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) in accordance with vehicle and cut.

Remove metal section (2).

Fig 11: Identifying Severance Cut And Metal Section

Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cut (1) on new engine support part in accordance with severance cut on vehicle and cut (1).

Release welded connection (2) and take off engine support section.

Fig 12: Identifying Engine Support Mark Severance Cut And Welded Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Grind a V-shaped groove (2) into the engine support section (1).

Determine the correct position of the groove by fitting the section into the new wheel arch part.

Prepare REINFORCEMENT PLATES at severance cuts.

Adjust new parts to fit with alignment bracket or universal mounting.

Fig 13: Identifying V-Shaped Groove And Engine Support Section

Courtesy of BMW OF NORTH AMERICA, INC.

Installation of engine support with wheel arch

Install new parts and reinforcement plates with alignment bracket or universal mount and weld.

NOTE: Only weld new parts in area (1) after installation of engine support section (2).

Additionally weld new parts in area (1) using plug welding method.

NOTE: In area (1), all 3 panels and the reinforcement plate must be properly MAG welded to each other.

Fig 14: Identifying Engine Support Section Welding Area

Courtesy of BMW OF NORTH AMERICA, INC.

Additionally weld new parts in area (1) using plug welding method.

Fig 15: Identifying Carrier Support, Wheel Arch And Engine Support

Courtesy of BMW OF NORTH AMERICA, INC.

In area (1) drill 1 Ø 6.8 mm hole for blind rivet.

IMPORTANT: Risk of damage!

Do not drill through add-on parts in passenger compartment behind panel.

Rivet new engine support part in area (1) with BLIND RIVET N1 .

Fig 16: Identifying Engine Support Part Riveting Area

Courtesy of BMW OF NORTH AMERICA, INC.
