41 34 038 Stripping-down operations - Replacing tail panel outer section
WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
The following list basically represents the removal sequence.
- Disconnect negative battery cable (job number: 61 20 900)
- Remove bumper trim (FR number: 51 12 156)
- Remove bumper carrier (FR number: 51 12 050)
- Remove left and right holder for bumper (job number: 51 12 801)
- Remove guide for bumper at rear center (job number: 51 12 825)
- Remove trim on tail panel at top (job number: 51 46 050)
- Remove and install left and right luggage compartment wheel arch panels (FR number: 51 47 151)
- Remove rear lid lock (FR number: 51 24 100)
- Partially detach tailgate seal
- Detach exhaust system in area of rear silencer (job number: 18 00 020)

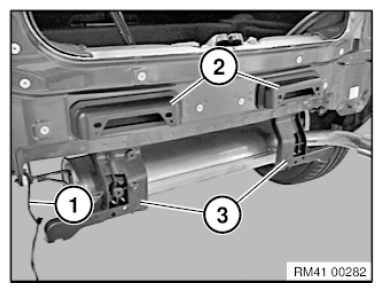

Detach wiring harness (1) at attachment points and tie forwards.
Remove tailgate vents (2).
Detach holder (3) for bumper and remove.
Installation note:
The rear ventilation (2) must not be damaged. (watertightness).
All latch mechanisms must engage audibly.
