41 62 540 Removing and installing/replacing both hinges for tailgate (tailgate removed)

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Operation is described on the left side. Right side identical.

Release nut (1) on vehicle.

Tightening torque 41 62 2AZ .

Remove hinge (2).

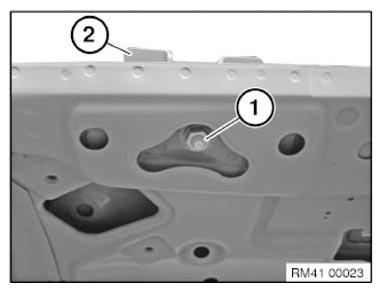

Fig 1: Identifying Hinge And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Before final assembly, apply sealing compound in area (1).

Adjust rear lid on the basis of the BODY GAP DIMENSIONS .

Fig 2: Identifying Sealing Compound Application Area

Courtesy of BMW OF NORTH AMERICA, INC.
