41 12 535 Stripping operations - Replacing luggage compartment floor and both side members (tail panel removed)
WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Owing to the different engine variants and equipment specifications, not all the components are taken into consideration.
The following list basically represents the removal sequence.
The following list basically represents the removal sequence.
- Remove rear wheel arch cover (job number: 51 71 041)
- Detach brake hose from brake pipe (job number: 03 34 006)
- Remove rear axle support (job number: 33 31 000)
- Remove spring strut shock absorber (job number: 33 52 100)
Release nut (1) for ground connection.
Tightening torque 41 34 1AZ .
Detach wiring harness at attachment points (2).
Release screw connections for control units (3).
Tie insulating mat (4) forwards.
Fig 1: Identifying Wiring Harness Attachment Points, Ground Connection Nut, Control Unit Screw Connections, And Insulating Mat

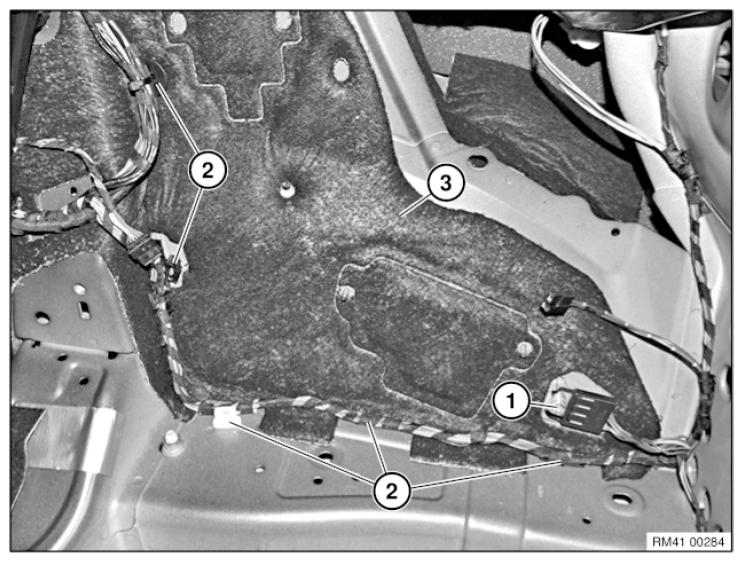

Release nut (1) for ground connection.
Tightening torque 41 34 1AZ .
Detach wiring harness (2) at attachment points and tie forwards.
Tie insulating mat (3) forwards.
