41 5.... Removing and installing door

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Do not damage adjoining body components.

Open door.

Release screw on connector frame.

Front door:

Tightening torque 41 51 3AZ .

Rear door:

Tightening torque 41 51 3AZ .

Fig 1: Locating Screw On Connector Frame

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure door against closing.

Release screw (1) on door stop.

Tightening torque 51 21 6AZ .

IMPORTANT: Secure door against falling.

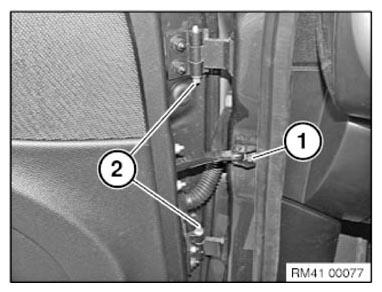

Fig 2: Identifying Screw On Door Stop

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2) and pull out of hinges.

Front door:

Tightening torque 41 51 1AZ .

Rear door:

Tightening torque 41 51 1AZ .

Pull plug connection from door post, unlock by pulling out bar and detach.

Unhinge door by moving upwards and place it on a suitable surface.

Installation:

If necessary, adjust DOOR .

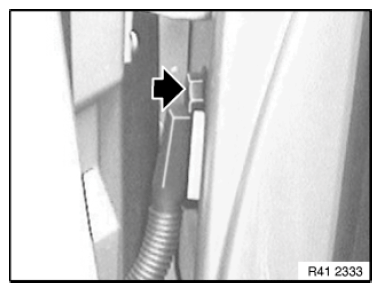

Fig 3: Pulling Plug Connection From Door Post

Courtesy of BMW OF NORTH AMERICA, INC.
