41 61 060 Removing and installing/replacing hinge for engine compartment lid

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Carry out repair work with a 2nd person helping.

Secure engine compartment lid against falling down using a second person.

Release nuts (1) and (2).

Tightening torque 41 61 1AZ .

Fig 1: Identifying Engine Compartment Lid Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release GAS PRESSURE SPRING (1) on engine compartment lid.

Release screws (2) and remove hinge.

Tightening torque 41 61 2AZ .

Installation note:

ADJUST hinge together with engine compartment lid.

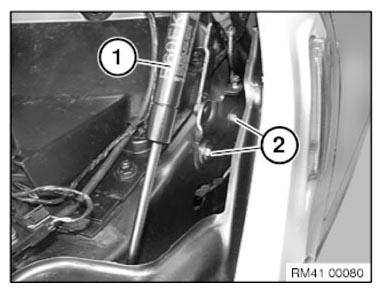

Fig 2: Identifying Gas Pressure Spring And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
