21 52 500 Removing and installing/replacing clutch master cylinder

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary work:

Remove DASHBOARD TRIM PANEL CARRIER at bottom left
Draw off brake fluid until level is below connection to clutch master cylinder.

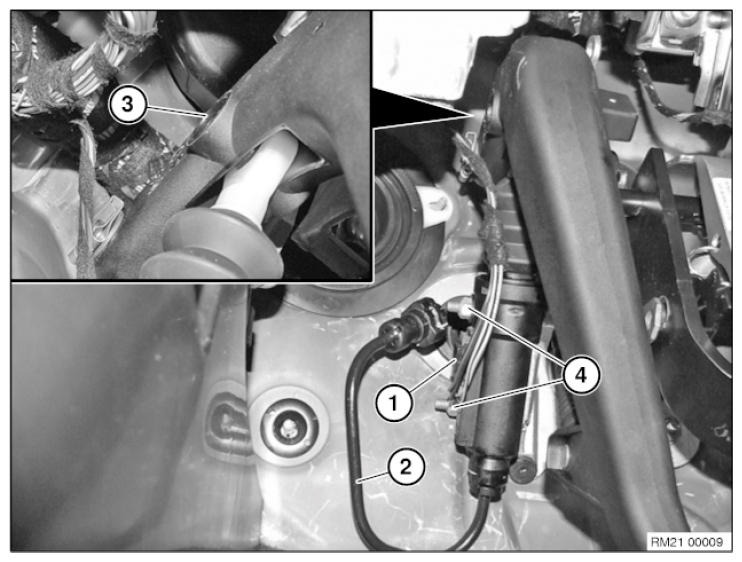

Fig 1: Identifying Plug Connection, Line, Bolts And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on clutch master cylinder.

Release quick-release connections of line (2) and remove line.

IMPORTANT: Catch brake fluid in a suitable collecting vessel.

Press bolt (3) together and press out.

Unscrew nuts (4).

Detach feed hose for clutch hydraulics and remove clutch master cylinder.

Installation note:

Replace self-locking nuts.

Tightening torque 21 52 3AZ .

After completing work bleed CLUTCH HYDRAULIC SYSTEM .
