12 31 020 Removing and installing or replacing alternator (N16, N18)

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Switch off ignition.
Disconnect BATTERY EARTH LEAD .
Remove AIR CONDITIONING COMPRESSOR .

N18 only:

Release screw.

Remove holder (1) and place to one side.

Fig 1: Identifying Holder And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release connector and remove.

Release nut (1) and remove positive battery cable.

Tightening torque 12 31 2AZ .

Loosen screws (2) and remove the belt tensioner (3).

Tightening torque: 20 Nm.

Fig 2: Removing/Installing Tensioning Device

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 12 31 1AZ .

Remove alternator (2) downwards.

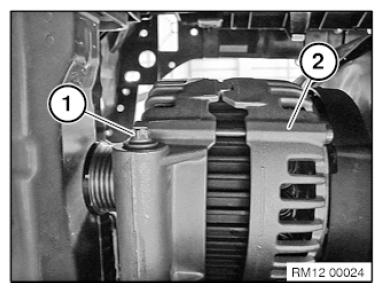

Fig 3: Identifying Alternator And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Reassemble the vehicle.
