63 14 120 Removing and installing or replacing rear reflector

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER TRIM

Disengage the rear reflector (1) on the latch mechanism (2) and feed it out from the bumper panel (3).

Fig 1: Identifying Rear Reflector Latch Mechanisms And Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The retaining lugs (1) and guide (2) on the rear reflector (3) must not be damaged or missing.

Make sure rear reflector (3) is correctly seated.

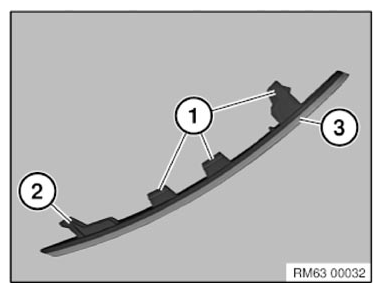

Fig 2: Identifying Rear Reflector Retaining Lugs And Guide

Courtesy of BMW OF NORTH AMERICA, INC.
