31 35 000 Removing and installing/replacing front stabilizer

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Lower FRONT AXLE SUPPORT .

Release nut (1); if necessary, grip dihedron (2) or hexagon socket.

Tightening torque 31 35 1AZ

Installation note:

Replace nut.

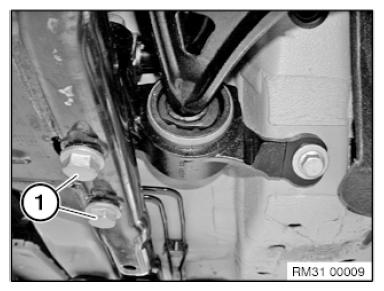

Fig 1: Releasing Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release left and right screws (1).

Tightening torque 31 35 3AZ .

Remove anti-roll bar (2) from wishbone holder.

Fig 2: Identifying Anti-Roll Bar And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Renew RUBBER MOUNTS ON ANTI-ROLL BAR .
