13 64 579 Clean all injectors with ultrasonic device

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove injectors. See REMOVING FUEL INJECTOR (N16) or REMOVING FUEL INJECTOR (N18) .

Prepare ultrasonic device
Prepare cleaning device 0 491 348 (13 6 200) with cleaning basket (1).

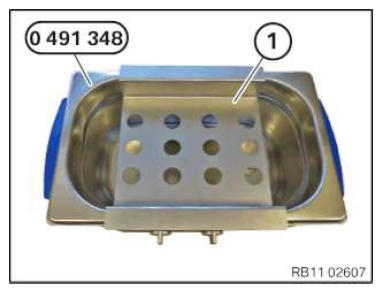

Fig 1: Identifying Cleaning Device (0 491 348) And Cleaning Basket
Courtesy of BMW OF NORTH AMERICA, INC.
Fill ultrasonic device with cleaning agent
- Fill 1000 ml of cleaning agent 0 491 355 (13 6 207) into a measuring cup (1), see illustration (2).

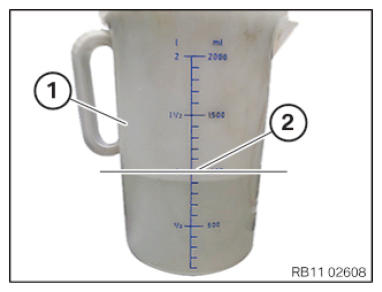

Fig 2: Filling Cleaning Agent Into Measuring Cup
Courtesy of BMW OF NORTH AMERICA, INC.
Clean injectors in ultrasonic device
- Fill cleaning agent (1000 ml) into
- the ultrasonic device.
Position and push injectors (1) into the cleaning basket (see illustration).

Adjust cleaning device 0 491 348 (13 6 200) with the temperature pre-selection to 60°.

Set cleaning device 0 491 348 (13 6 200) to a cleaning time of 30 minutes.

Follow manufacturer's instructions.

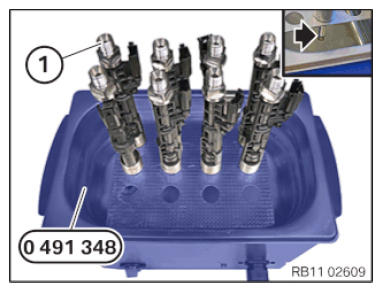

Fig 3: Positioning Injectors Into Cleaning Basket
Courtesy of BMW OF NORTH AMERICA, INC.
