26 12 001 Replacing complete propeller shaft center bearing

WARNING: This page is about a different car, the 2016 MINI Cooper Paceman, 2015 MINI Cooper Paceman, 2014 MINI Cooper Paceman, and 2013 MINI Cooper. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

NOTE: The propeller shaft is balanced.
The front and rear propeller shafts must be reassembled in the same position.
Mark front propeller shaft (1) and rear propeller shaft (2) in one plane.

Undo bolt (3) and pull apart propeller shaft.

Replace screw.

Tightening torque 26 11 5AZ .

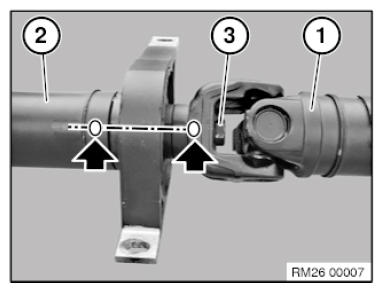

Fig 1: Identifying Front Propeller Shaft, Rear Propeller Shaft, And Bolt
G11023386Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pay attention to installed position of spacer ring (1).

Clean thread (2).

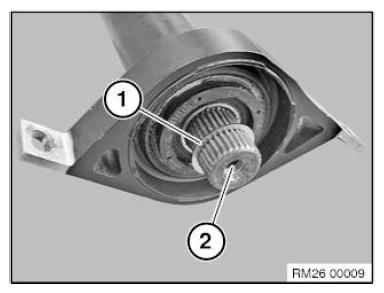

Fig 2: Identifying Spacer Ring
G11010558Courtesy of BMW OF NORTH AMERICA, INC.

Install special tool 00 7 500 between center bearing (1) and propeller shaft (2).

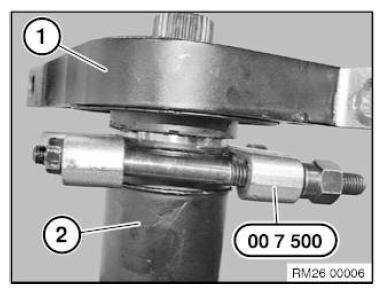

Fig 3: Installing Special Tool (00 7 500) Between Center Bearing And Propeller Shaft
G11010559Courtesy of BMW OF NORTH AMERICA, INC.

Using a hydraulic press, force center mount (1) off propeller shaft (2).

Installation note:

Apply a coating of grease to longitudinal splines on shaft (refer to SPECIFIED GREASE ).

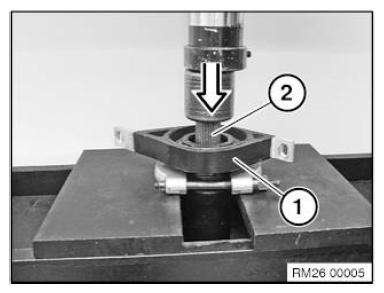

Fig 4: Installing Propeller Shaft
G11010560Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 23 2 430 to press on new center bearing (1).

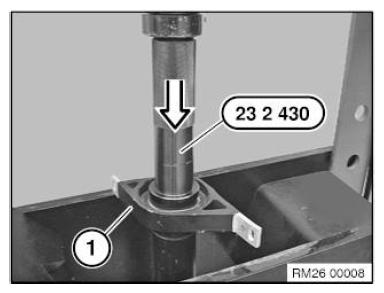

Fig 5: Pressing On Center Bearing Using Special Tool (23 2 430)
G11010561Courtesy of BMW OF NORTH AMERICA, INC.
