51 42 001 Replacing left or right rear door trim panel

Necessary preliminary tasks:

Swap over the following parts according to version:

For version with light package only:

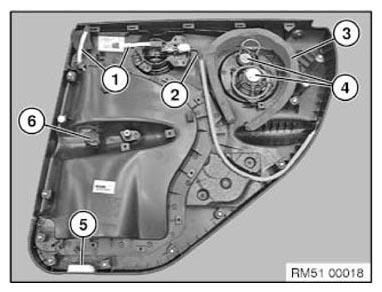

Fig 1: Identifying Bowden Cable, Speaker And Footwell Light

Courtesy of BMW OF NORTH AMERICA, INC.

For version without light package only:

Version with armrest:

Cut out door trim panel along marking (1).

NOTE: For sawing, use special cutter with oscillating blade.

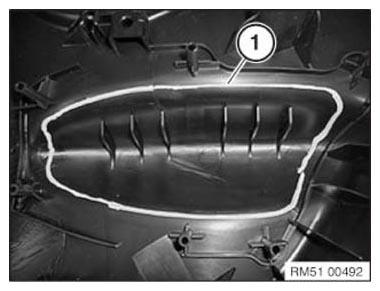

Fig 2: Cutting Out Door Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Smooth off rough edges of cut (1).

Remove all spot-welds (2) to a max. protrusion of 1 mm.

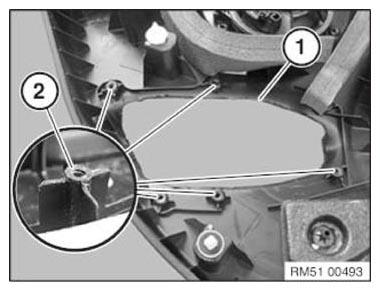

Fig 3: Identifying Spot Welds And Edges Of Cut

Courtesy of BMW OF NORTH AMERICA, INC.

Insert adapter (1) and fix with bolts (2).

Swap over ARMREST or fit new ARMREST .

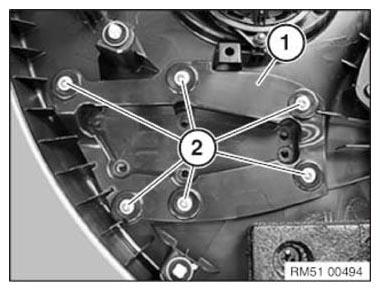

Fig 4: Identifying Adapter And Bolts

Courtesy of BMW OF NORTH AMERICA, INC.
