51 16 254 Removing and installing/replacing the rail (short)

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Only for version with center armrest:

Turn cup holder (1) aside. The required operations are described at:

Fig 1: Identifying Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 51 16 6AZ .

Unclip the end cover (2) in the marked area (3) and feed out toward the rear.

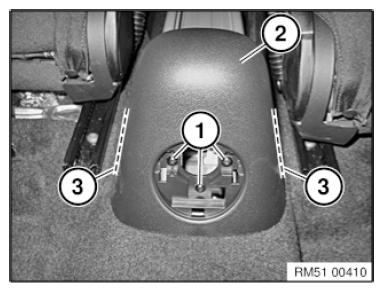

Fig 2: Identifying End Cover Screws And Clipping/Unclipping Points

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs (1) on the cover panel (2) must not be damaged or missing.

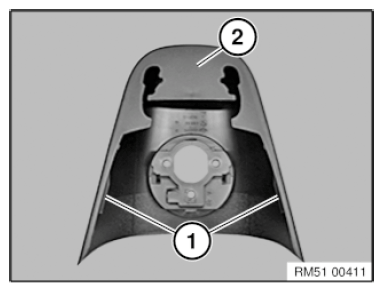

Fig 3: Identifying Retaining Lugs On Cover Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Release rear and front screws (1) from mounting rail (3).

Tightening torque 51 16 9AZ .

Carefully feed out mounting rail (3) and set down.

Installation note:

Feed mounting rail (3) correctly into locating pin (2).

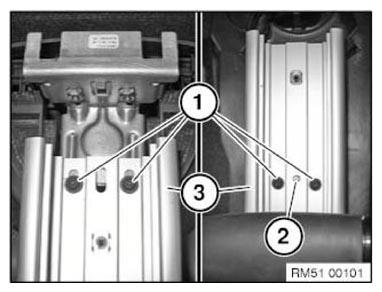

Fig 4: Identifying Mounting Rail Screws And Locating Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

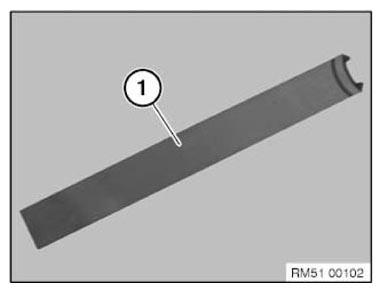

Fig 5: Identifying Insert Mat

Courtesy of BMW OF NORTH AMERICA, INC.
