51 47 161 Removing and installing/replacing right luggage compartment wheel arch panel
Necessary preliminary tasks:
- Fold down rear right seat
- Remove REAR APRON TRIM
- Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL

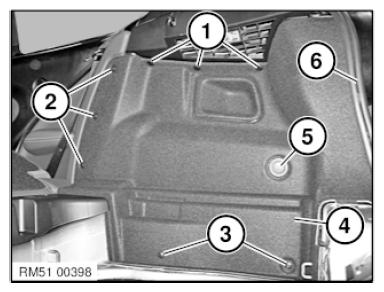

Loosen rotary clips (1).
Release expanding rivets (2 and 3).
Feed out the luggage compartment wheel arch panel (4) a little and disconnect the plug connection for the power socket (5).
Installation note:
Replace faulty rotary clips (1) and expanding rivets (2 and 3).
Ensure that edge protection (6) is correctly seated.
