51 47 101 Removing and installing/replacing luggage compartment floor trim panel

Release the clips (1) and feed out the luggage compartment floor trim panel (2).

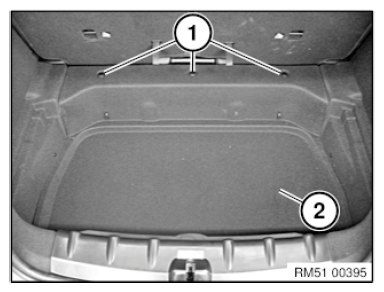

Fig 1: Identifying Luggage Compartment Floor Trim Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Overview of Activities

Additional Information

Main Work

1. Removing the luggage compartment floor trim panel
2. Installing the luggage compartment floor trim panel

General information

MAIN WORK

1-Removing the luggage compartment floor trim panel

• Fold up luggage compartment floor trim panel (1).
• Loosen plastic nuts (2).
• Remove luggage compartment floor trim panel (1) in direction of arrow.

Fig 1: Removing Luggage Compartment Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

2-Installing the luggage compartment floor trim panel

• Place luggage compartment floor trim panel (1) in the direction opposite to arrow.
• Fold back luggage compartment floor trim panel (1) as shown.
• Tighten plastic nuts (2).
  LUGGAGE COMPARTMENT FLOOR TRIM PANEL TO BODY



  3 Nm

• Fold down luggage compartment floor trim panel (1).
• Close tailgate.

Fig 2: Removing Luggage Compartment Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
