63 21 055 Replacing a socket housing for left or right rear light
WARNING:
Follow instructions for HANDLING LIGHT BULBS (EXTERIOR LIGHTS) .
Necessary preliminary tasks:
- Remove LEFT OR RIGHT REAR LIGHT

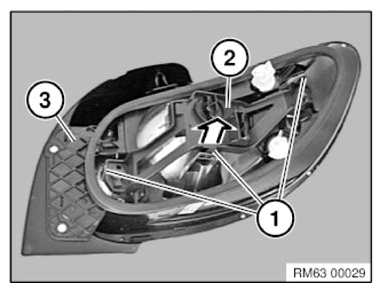

Release catches (1).
Pull the socket housing (2) out of the rear light (3).
Installation note:
Make sure the socket housing (2) is correctly seated in the rear light (3).

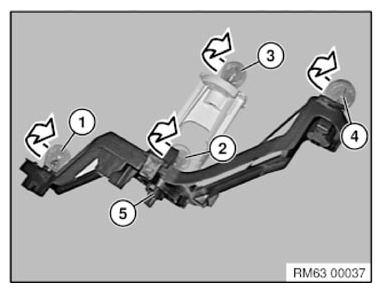

Pull bulb (1-4) in direction of arrow out of the socket housing (5).
- Brake light
- Side lights
- Turn indicator
- Rear fog light (left rear light)/reversing light (right rear light)
Installation note:
Note BULB TYPE .
