63 21 170 Removing and installing/replacing left or right rear light

Remove the flap (1) on the trim panel in direction of arrow.

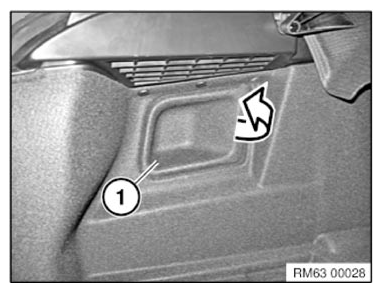

Fig 1: Removing Rear Light Trim Panel Flap

Courtesy of BMW OF NORTH AMERICA, INC.

Turn the locking screw (1) in direction of arrow to limit position.

Installation note:

Make sure the locking screw (1) is correctly seated on side wall (2).

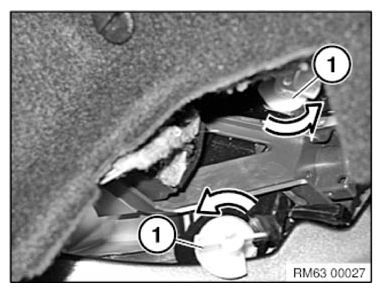

Fig 2: Turning Locking Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 63 21 2AZ .

Carefully remove rear light (2) in direction of arrow.

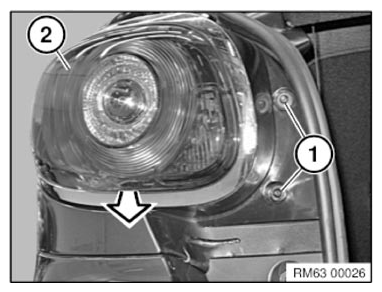

Fig 3: Removing Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.
