63 13 200 Removing and installing/replacing front left or right side repeaters

Necessary preliminary tasks:

Unlock retaining lug (1) and press side repeater (2) in direction of arrow.

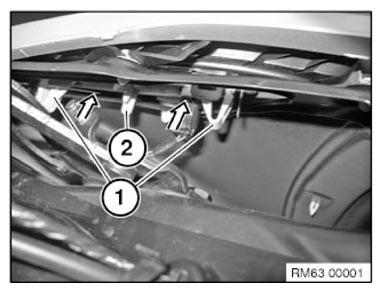

Fig 1: Identifying Retaining Lug And Side Repeater

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove side repeater (2).

Installation note:

Latch mechanisms and guides (3) must not be damaged or missing.

Make sure that side repeater (2) is correctly locked.

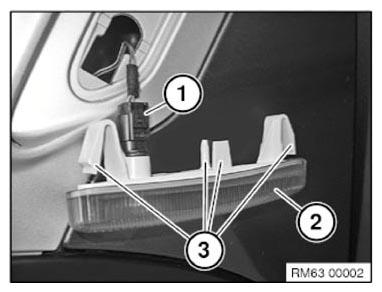

Fig 2: Identifying Side Repeater Plug Connection, Latch Mechanisms And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:
