63 99 295 Replacing bulb for left or right side repeater

Necessary preliminary tasks:

• Remove SIDE REPEATER  on front left or right

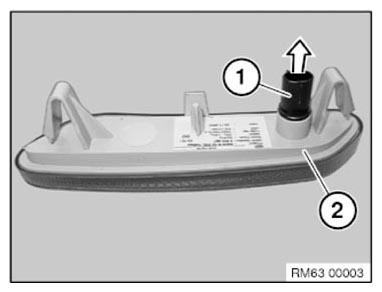

Turn bulb holder (1) to the left and remove from front side repeater (2) in direction of arrow.

Fig 1: Removing Bulb Holder From Front Side Repeater

Courtesy of BMW OF NORTH AMERICA, INC.

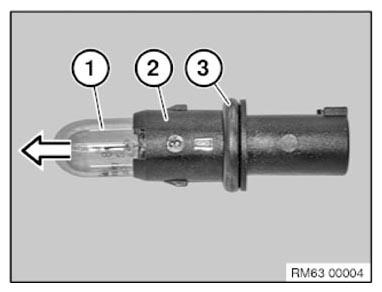

Pull bulb for side repeater (1) out of bulb holder (2).

Installation note:

Make sure sealing ring (3) is correctly seated on bulb holder (2)

Note BULB TYPE .

Fig 2: Pulling Bulb For Side Repeater Out Of Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
