63 31 260 Remove and install/replace the LED for the front center

Necessary preliminary tasks:

Turn the cup holder (1) away toward the side.

Fig 1: Identifying Cup Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Carefully pull off the LED for the center rail (2) from the fibre optic conductor (3).

Installation note:

The LED for the center rail (2) must be felt to snap into place in the fibre-optic conductor (3).

The fibre-optic conductor (3) must not be damaged.

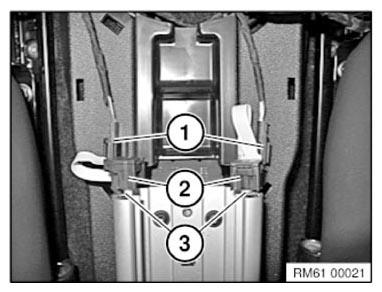

Fig 2: Identifying LED Center Rail, Fiber Optic Conductor And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
