65 20 022 Removing and installing/renewing roof-mounted aerial (on version with slide/tilt sunroof)

Necessary preliminary tasks:

• Lower the HEADLINING (do not remove completely)

Unlock plug connections (1) and disconnect.

Slacken nut (2).

Tightening torque 65 20 2AZ .

Remove holder of base of aerial (3) downwards.

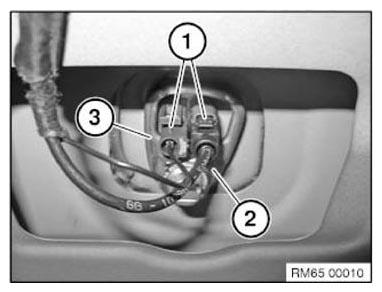

Fig 1: Identifying Aerial Base, Plug Connection And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Remove roof aerial (1) in upward direction in direction of arrow.

Fig 2: Removing Roof Aerial

Courtesy of BMW OF NORTH AMERICA, INC.
