51 13 301 Removing and installing/replacing left or right roof strip

Special tools required:

Necessary preliminary tasks:

IMPORTANT: Take extra caution while removing, clip (2) are very easy to break.
Apply special tool 00 9 327 directly in front of each clip.

Starting from the front, use special tool 00 9 327 to remove roof strip (1) from clips (2).

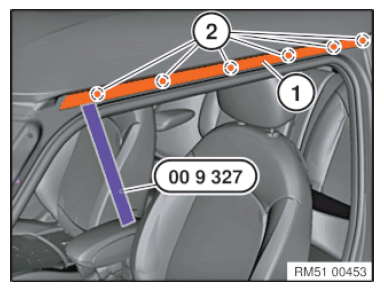

Fig 1: Removing Roof Strip From Clips Using Special Tool (00 9 327)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clips (1) of roof strip (2) must not be damaged or missing.

Replace faulty clips (1).

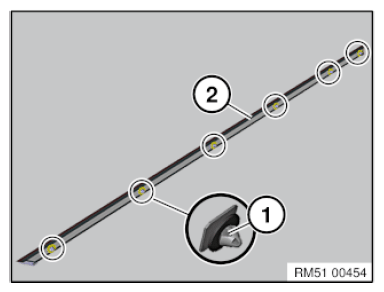

Fig 2: Identifying Roof Strip And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
