51 45 051 Replacing upper part of dashboard trim panel

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Release nuts (1) from front passenger airbag module.

Tightening torque 72 12 1AZ .

Modify sheet metal nuts (2).

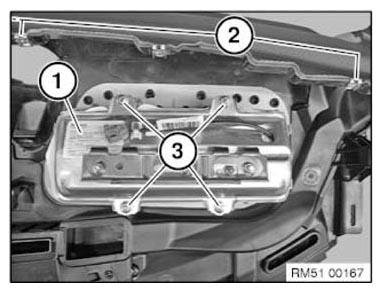

Fig 1: Identifying Front Passenger Airbag Module And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
