51 71 447 Removing and installing/replacing trim panel for cover on frame side member (left or right)

Special tools required:

Necessary preliminary tasks:

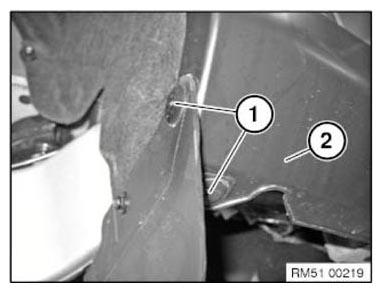

Release screws (1) at front of wheel arch.

Fig 1: Identifying Front Wheel Arch Screws

Courtesy of BMW OF NORTH AMERICA, INC.

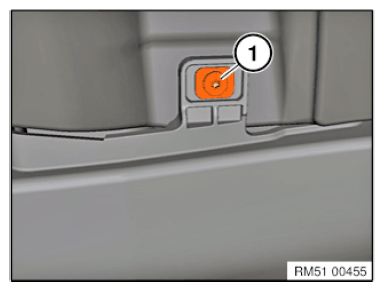

Release expansion rivet (1).

Installation note:

Renew faulty expanding rivet (1).

Fig 2: Identifying Expansion Rivet

Courtesy of BMW OF NORTH AMERICA, INC.

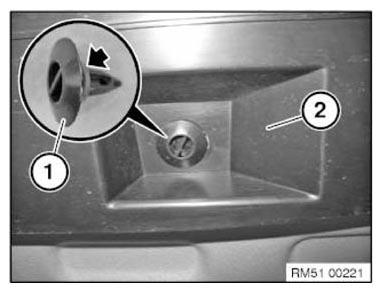

Release expander rivets (1) on rear of trim panel (2) for frame side member.

Installation note:

Replace expanding rivets (2).

Fig 3: Identifying Expander Rivets On Rear Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

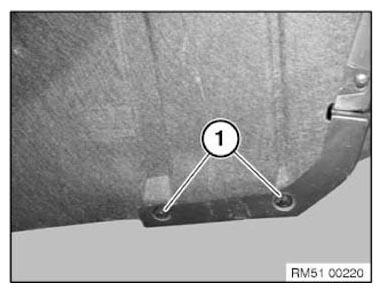

Release lower clips (1) along trim panel for side member (2).

Installation note:

Clips (1) must be installed with sealing ring.

Fig 4: Locating Trim Panel Clips

Courtesy of BMW OF NORTH AMERICA, INC.

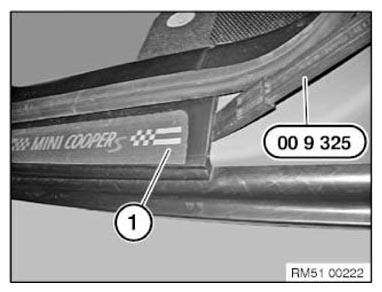

Lever out top front of trim panel for frame side member (1) at entrance with special tool 00 9 325 .

NOTE: Considerable effort is required to lever out the panel.

Fig 5: Removing Frame Side Member Entrance With Special Tool (00 9 325)

Courtesy of BMW OF NORTH AMERICA, INC.

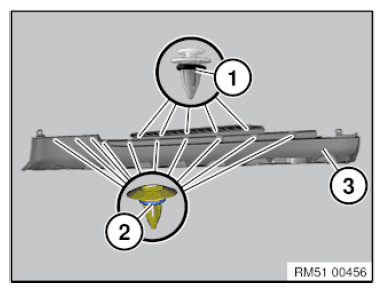

Unclip trim panel for frame side member (3) and detach.

Installation note:

Clips (1) and (2) must not be damaged or missing. Seal must be installed.

Replace faulty clips (1) and (2).

Clips (1) = black

Clips (2) = white

Replacement

Fig 6: Identifying Frame Side Member Trim Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
