51 13 105 Removing and installing/replacing cover on wheel arch

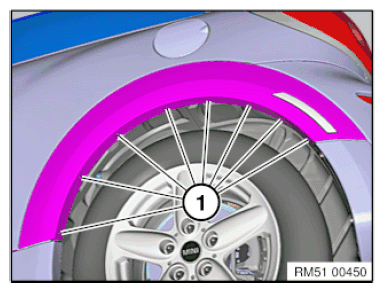

Release expanding rivets (1).

Fig 1: Identifying Expanding Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

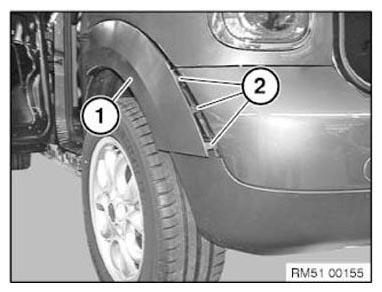

Release cover (1) from latch mechanisms (2).

Fig 2: Identifying Cover And Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

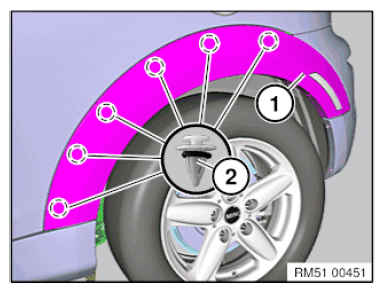

Carefully release cover (1) from clip (2).

Fig 3: Identifying Cover And Clip

Courtesy of BMW OF NORTH AMERICA, INC.

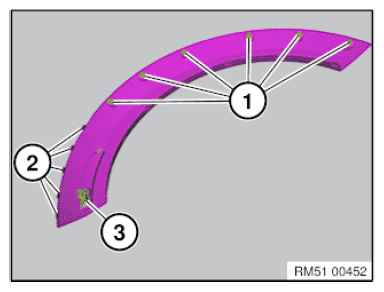

Installation note:

Clips (1) and retaining lugs (2) on cover must not be damage or missing.

Replace faulty clips (1).

If replacing with US national-market version:

Fig 4: Identifying Clips And Retaining Lugs On Cover

Courtesy of BMW OF NORTH AMERICA, INC.
