51 71 412 Removing and installing/replacing rear spoiler

Necessary preliminary tasks:

Build date up to 07/2012:

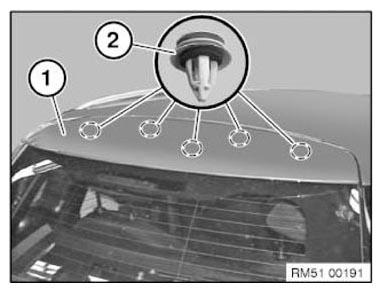

Lever out seal plugs (1) and release screws underneath.

Tightening torque 51 71 7AZ .

Fig 1: Identifying Rear Spoiler Seal Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Version after 07/2012:

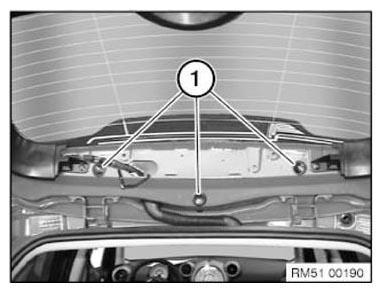

Lever out sealing plugs and unscrew nuts (1) underneath.

Unfasten screws (2).

Tightening torque 51 71 7AZ .

Fig 2: Identifying Rear Spoiler Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

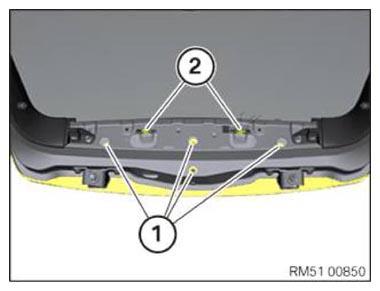

Detach rear spoiler (1) in upward direction from clips (2).

Fig 3: Identifying Rear Spoiler And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

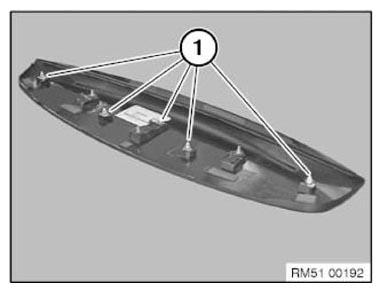

Renew faulty clips (1)

Check welded connection of inner and outer shells are free of damage (visual inspection).

Fig 4: Identifying Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Guide (1), bolts (2) and gaskets (3) must not be damaged or missing.

Fig 5: Identifying Guide, Bolts And Gaskets

Courtesy of BMW OF NORTH AMERICA, INC.
