51 49 131 Removing and installing (replacing) upper trim panel for rear window frame

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Detach trim panel (2) from clips (1).

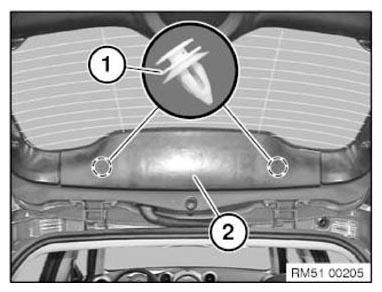

Fig 1: Identifying Rear Lid Trim Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove trim panel (2) towards bottom.

Fig 2: Identifying Rear Lid Trim Panel And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clips (1) of trim panel (2) must not be missing or damaged.

Replacement

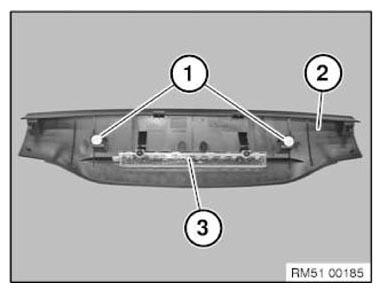

Fig 3: Identifying Trim Panel, Brake Light And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
