51 34 195 Removing and installing/replacing door window glass in clubdoor

Necessary preliminary tasks:

IMPORTANT: Secure door window glass (3) against falling out.

Release nuts (1 and 2).

Tightening torque 51 34 1AZ .

Feed out door window glass (3) towards rear and remove.

Fig 1: Identifying Door Window Glass With Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure seal (1) is correctly seated on clubdoor.

Sealing surface must be clean and free of grease.

Replace damaged seal.

Fig 2: Identifying Seal

Courtesy of BMW OF NORTH AMERICA, INC.

DOOR WINDOW GAP DIMENSIONS SPECIFICATIONS

Door window adjustment (overview)
GAP DIMENSIONS	Distance/Protrusion
x	Distance door window to side window (rear)
y	Protrusion door window to side window (rear)
z	Distance door window to lower roof edge

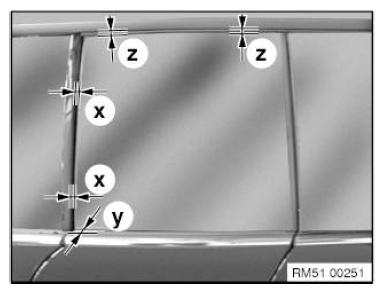

Fig 3: Identifying Door Window Gap Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Slightly loosen nuts (1).

Tightening torque 51 34 1AZ .

Adjust gap dimensions x and z of door window by sliding in the recess (2).

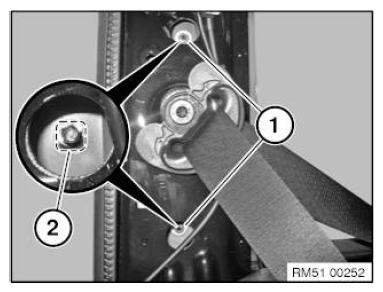

Fig 4: Identifying Nuts And Recess

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Do not perform this operation until the gap dimensions x and z have been adjusted correctly.

Loosen and adjust nuts (2) until the protrusion y on the door window (1) has been adjusted correctly.

Tightening torque 51 34 1AZ .

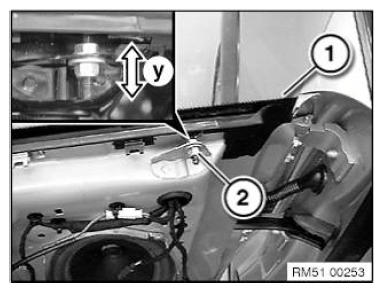

Fig 5: Identifying Door Window, Protrusion And Adjust Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
