41 00... Gap dimensions, body

NOTE: The dimensions specified in this service information are applicable at an object temperature of 20 °C. The aim of the setting is to achieve a uniform gap pattern.
Symmetry of the gaps between left and right sides of the vehicle has top priority.
The door gaps must not deviate between the front and rear door gap by more than 1.0 mm.
No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

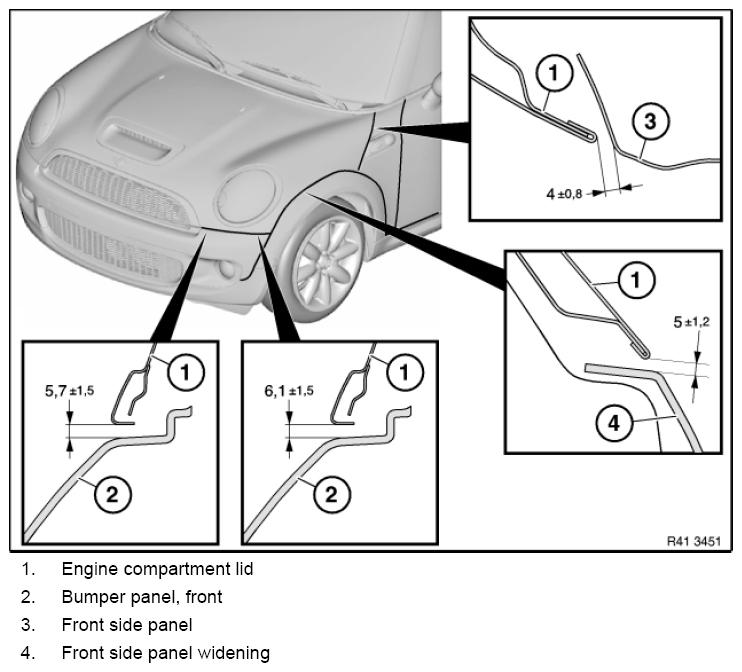

Fig 1: Checking Body Gap Dimensions (1 Of 6)
G11003012Courtesy of BMW OF NORTH AMERICA, INC.

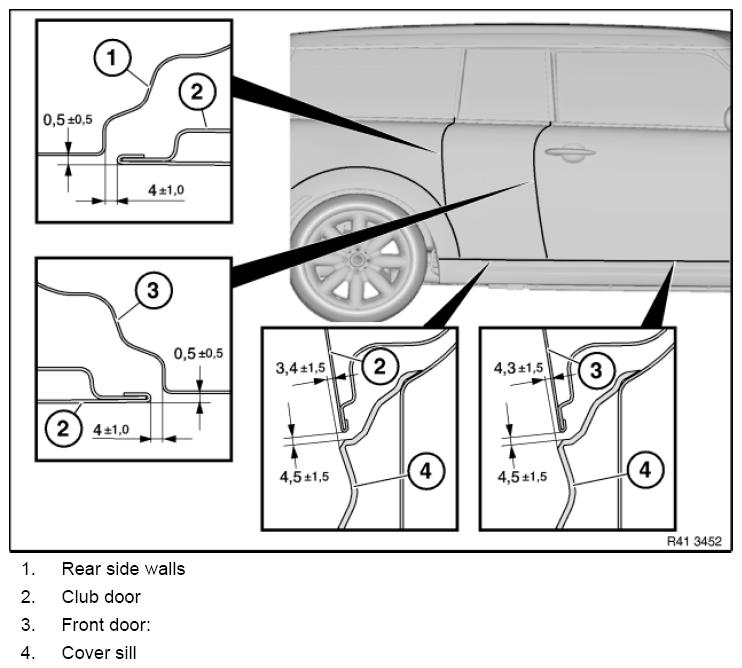

Fig 2: Checking Body Gap Dimensions (2 Of 6)
G11003013Courtesy of BMW OF NORTH AMERICA, INC.

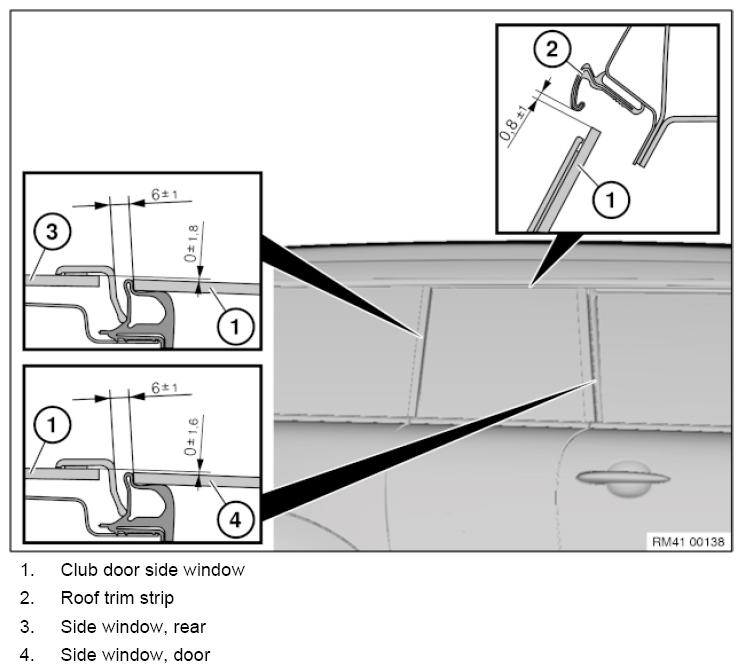

Fig 3: Checking Body Gap Dimensions (3 Of 6)
G11003014Courtesy of BMW OF NORTH AMERICA, INC.

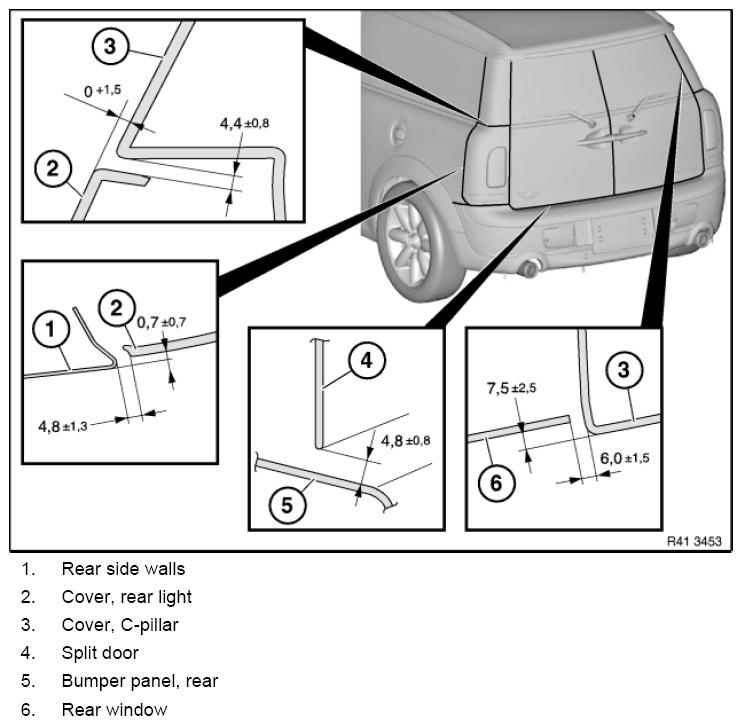

Fig 4: Checking Body Gap Dimensions (4 Of 6)
G11003015Courtesy of BMW OF NORTH AMERICA, INC.

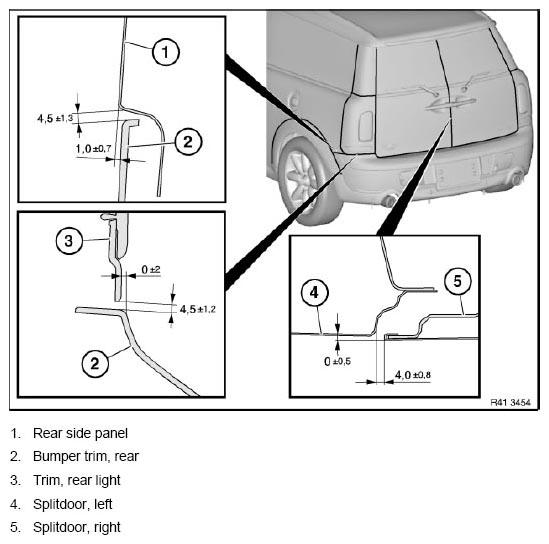

Fig 5: Checking Body Gap Dimensions (5 Of 6)
G05516540Courtesy of BMW OF NORTH AMERICA, INC.
Fig 6: Checking Body Gap Dimensions (6 Of 6)
G05516541Courtesy of BMW OF NORTH AMERICA, INC.
