41 63 003 Replace cover bowl

Necessary preliminary tasks:

NOTE: Carry over schematic diagram to the relevant vehicle type.

IMPORTANT: Deformation of the sheet metal flanges in the side panel and the wheel arch results in permanent vehicle leakage. Carry out removal/installation with great care.

Following new body parts are required:

(1) Cover bowl

Fig 1: Identifying Cover Bowl

Courtesy of BMW OF NORTH AMERICA, INC.

MINI COOPER S:

Unclip and remove fuel filler cap cover.

Fig 2: Identifying Fuel Filler Cap Cover

Courtesy of BMW OF NORTH AMERICA, INC.

MINI COOPER S:

Installation note:

Latch mechanisms (1) must not be damaged.

Fig 3: Identifying Fuel Filler Cap Cover Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts (1) and (2) from fuel filler pipe.

Tightening torque 16 11 1AZ .

Installation note:

Make sure that grounding cable (3) is connected with the mounting.

Fig 4: Identifying Fuel Filler Pipe Nuts And Grounding Cable

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Illustrations shows fuel filler pipe removed.

Remove rubber seal from sheet metal flange.

Fig 5: Locating Rubber Seal

Courtesy of BMW OF NORTH AMERICA, INC.

Turn sleeve (1) by approx. 45° and pull out in direction of arrow.

Fig 6: Turning Sleeve By 45 Degrees

Courtesy of BMW OF NORTH AMERICA, INC.

Press retaining strap (1) inwards and remove (see arrow).

Remove cover (2).

Pierce cover bowl at markings (3) with a small screwdriver.

Fig 7: Pressing Retaining Strap Inwards

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screwdriver to a depth of max. 5 mm and unlock cover bowl latch mechanism.

Fig 8: Inserting Screwdriver In Cover Bowl Latch Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock latch mechanisms (1) and (2) in succession.

Lever out cover bowl in area (3) with plastic wedge.

IMPORTANT: Do not damage sheet metal flange of side wall.

Fig 9: Unlocking Latch Mechanisms

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully turn cover bowl (1) in direction of arrow and remove.

Installation note:

Open hinge arm.

Insert cover bowl and engage sealing sleeve over fuel filler pipe.

Fig 10: Turning Cover Bowl

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Sealing lip (2) has a shaped extension that serves as a fitting aid (1).

Using fitting aid (1), pull sealing lip (2) over sheet metal flange of wheel arch (3).

Fig 11: Pulling Sealing Lip Using Fitting Aid

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Illustrations shows fuel filler pipe removed.

Check that sealing lip is correctly seated.

Fig 12: Locating Sealing Lip

Courtesy of BMW OF NORTH AMERICA, INC.

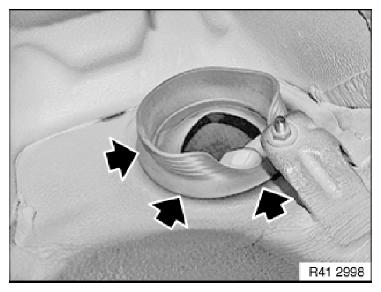

Installation note:

Cover bowl must snap into place 3 times.

After installing, carefully check that cover bowl is securely seated.

There must be no discernible gap between sealing lip and side wall in area (1).

Fig 13: Identifying Cover Bowl Side Wall Area

Courtesy of BMW OF NORTH AMERICA, INC.
