51 71 406 Removing and installing/replacing rear spoiler

Necessary preliminary tasks:

• Partially lower rear headlining (from B-pillar) and support. See ROOFLINER (WITH SLIDE/TILT SUNROOF)  or HEADLINING (WITHOUT SLIDE/TILT SUNROOF) .

Slacken top nuts (1).

Tightening torque 51 71 10AZ .

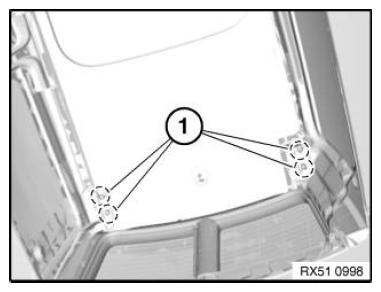

Fig 1: Identifying Rear Spoiler Top Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully lift out rear spoiler (1) in upward direction.

Installation:

Seals around retaining bolt must not be damaged.

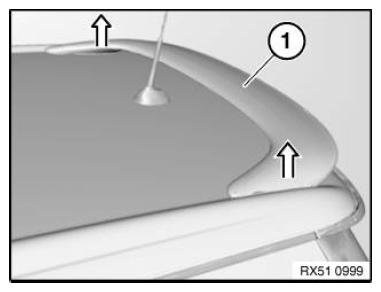

Fig 2: Lifting Out Rear Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.
