614390 Measurement aid

Minimum set: Measuring and testing equipment MP

NOTE: (Test box, 60-pin) For connecting all adapter cables with 27-pin to 60-pin plug connections. Replaced by new test box set 83 30 2 352 990 .

Storage Location:

S207

SI number:

02 02 98 (308)

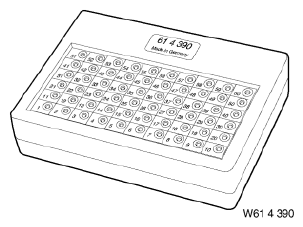

Fig 1: Identifying Measurement Aid (614390)
G04739561Courtesy of BMW OF NORTH AMERICA, INC.
