2352990 Tester

Minimum set: Measuring and testing equipment MP

NOTE: Test box set (2 x 66 Pole) incl. LED display and templates for existing adapter cables. Suitable for all adapter cables with D sub plug. Consists of: 1. Case, 2. Test box 2 (67 - 132 pins), 3. Connecting cable, 4. Template set, 5. Long connecting cable, 6. Ground terminal, 7. Short connecting cable, 8. Test box 1 (1-66 pins)

Storage Location:

Individual

SI number:

02 10 15 (242)

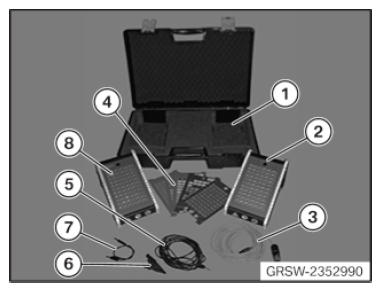

Fig 1: Identifying Tester (2352990)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

1 = 2410561 Adapter

NOTE: D-sub connector as replacement part for measuring box set (83302352990)
