51 47... Removing and installing/replacing luggage compartment through-loading facility cover

Necessary preliminary tasks:

• Remove FRONT LUGGAGE COMPARTMENT FLOOR TRIM PANEL
• Remove LOWER TRIM PANEL , partition wall on left/right

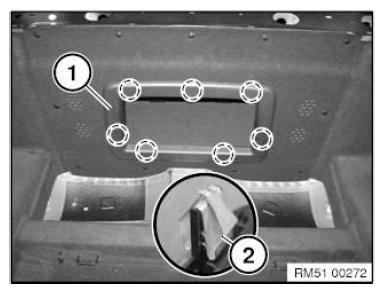

Release trim ring (1) from clamps (2) in the areas marked and remove.

Installation note:

Replace faulty clamps (2).

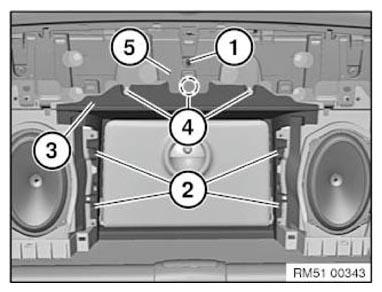

Release screws (1 and 2).

Release through-loading facility cover (3) from clips (4).

Pull trim panel (5) in middle inwards slightly and feed out through-loading facility cover (3) sideways.

Installation note:

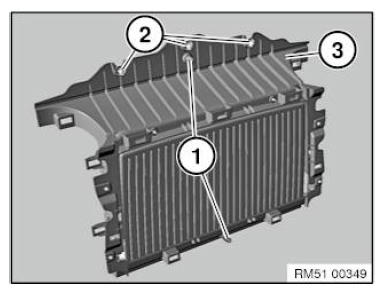

Guides (1) and clips (2) on through-loading facility cover (3) must not be damaged or missing.

Replacement:

Modify THROUGH-LOADING FACILITY FLAP .
