51 47... Removing and installing/replacing luggage compartment through-loading facility flap
Necessary preliminary tasks:
Release trim ring (1) from clamps (2) in the areas marked and remove.
Installation note:
Replace faulty clamps (2).

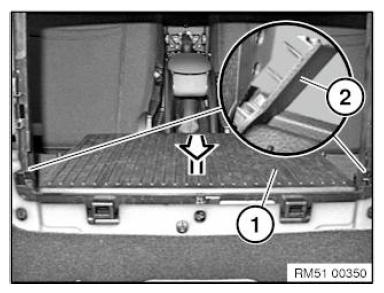

Open through-loading facility flap (1).
Lever out protective cap (2) on left/right.
Feed out through-loading facility flap (1) in direction of arrow.
Installation note:

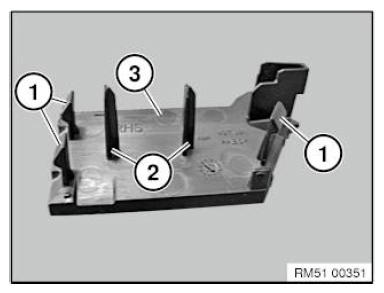

Retaining lugs (1) and guides (2) of protective cap (3) must not be damaged or missing.
