54 34... Topping up/extracting fluid, checking oil level
WARNING: This page is about a different variant/trim than selected.
NOTE:
No changing of the hydraulic fluid necessary.
- The hydraulic fluid does not have to be changed because the system is filled with life-time oil filling.
- Only the approved hydraulic fluid may be used after a leak.
- All hydraulic cylinders must be completely extended.
- The hydraulic system is automatically bled by repeated actuation.
Necessary preliminary tasks:
- Remove the HYDRAULIC UNIT (hydraulic system closed)
IMPORTANT:
Protect components and workbay with suitable materials (e.g. cloths).
Topping up oil:
Vertically position the hydraulic unit.
Open oil filler plug.
Pour in required oil quantity from fluid bottle.
Installation note:
Check oil level in the meantime.
Extracting oil:
Open oil filler plug.
Tilt the hydraulic unit and let the oil flow out or draw it off with suitable auxiliary materials.
Checking oil level:

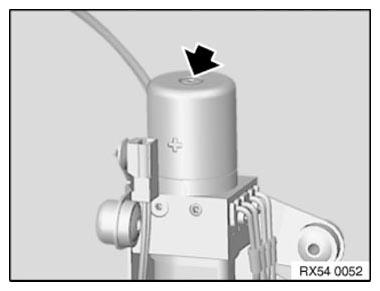

Oil level must be within the marks (arrow) when the assembly is horizontal.
