41 34 042 Replacing outer section of rear apron (partial replacement - middle)

WARNING: This page is about a different variant/trim than selected.

Read contents of BODY, GENERAL .

Observe (REPAIR STAGE 2) procedure!

Following new body parts are required:

Following CONSUMABLES are required:

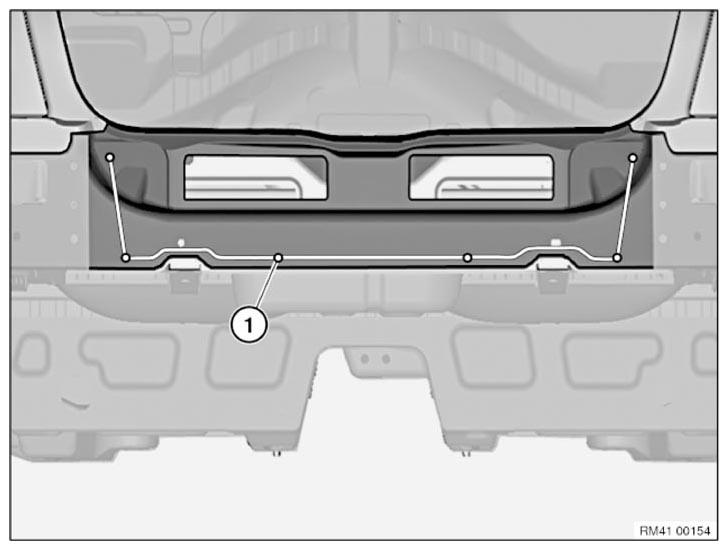

Fig 1: Identifying Rear Trim Panel (Outer Skin)

Courtesy of BMW OF NORTH AMERICA, INC.

Removing rear trim panel

Operation is described on the left side. Right side identical.

Mark severance cut in accordance with Dimension a and cut.

IMPORTANT: Cut outer metal panel only.

Dimension (A) = 180 mm.

Fig 2: Identifying Severance Cut Dimension, Brazed Joint Area, And Welded Connection Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Open brazed joint in area (1) by grinding.

Open welded connections in areas (2).

Preparation of new part:

Mark new part in accordance with severance cuts on vehicle + 20 mm extra material in each case and cut.

Fig 3: Identifying Areas For Blind Rivet Bore Holes

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust rear trim panel to fit and secure.

Set 9 4.2 mm dia. holes for blind rivets in areas (1).

Remove new part again and deburr bore holes.

IMPORTANT: Do not grind new part and body in area of bonding surfaces.

Installing rear trim panel:

Clean all bonding surfaces on new part and on vehicle with cleaning agent R1.

Apply adhesive to bonding surfaces (1).

Fig 4: Identifying Bonding Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Mount rear trim panel and rivet with blind rivets N3 (1).

Fig 5: Identifying Blind Rivet Locations

Courtesy of BMW OF NORTH AMERICA, INC.

In areas (1) to (3) rivet rear panel with punch rivets N4.

Refer to table below for number.

Fig 6: Locating Areas For Punch Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

After hardening of the adhesive install 6 EMC SCREWS in the areas shown.

Fig 7: Identifying Installation Areas For EMC Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Graphic similar.
